Paint

How a node looks: fills, gradients, corners, borders, clipping, masks, shadows and the four blurs. Layout and per-kind properties are on Nodes; easing any of these values is on Animation.

column {
    width = 240,
    padding = 16,
    spacing = 10,
    background = "#1E1E2EF2",
    radius = 12,
    border_width = 1,
    border_color = "#FFFFFF1A",
    shadows = { { color = "#00000099", blur = 18, offset = { x = 0, y = 8 } } },
    children = {
        row {
            width = "fill",
            children = {
                text { content = "Battery", width = "fill", font_size = 14, font_weight = 700, foreground = "#CDD6F4" },
                text { content = "82%", font_size = 14, foreground = "#A6E3A1" },
            },
        },
        rect {
            width = "fill",
            height = 6,
            radius = 3,
            background = "#313244",
            children = { rect { width = "82%", height = 6, radius = 3, background = "#A6E3A1" } },
        },
        text { content = "3 h 10 min left", font_size = 12, foreground = "#A6ADC8" },
    },
}

A card: a translucent rounded fill, a hairline border and a soft shadow below it.

Terms

Output scale

Node sizes, positions, input and compositor regions use logical pixels. Mantle paints each surface into a buffer sized for that surface’s compositor scale, including fractional scales when the compositor offers fractional-scale and viewporter together. Moving a surface between outputs repaints its buffer at the new scale. Text and images gain resolution without changing the layout. The node scale property is a separate paint transform; it does not set output scale.

Who takes what

A property on a kind that does not take it is refused, naming the closest property the kind takes or, with none close, listing them all.

Every property can be a signal, and so can a value inside a property table, such as a gradient stop’s colour or one border edge. A malformed value draws the property’s default and goes to mantle log and mantle.rescue; a reload and mantle check refuse it (runtime).

Colours

Colours are strings "#RRGGBB" or "#RRGGBBAA", hex digits in either case. There are no named colours and no short #RGB form.

Box properties

Continuous corners

corner_smoothing is Figma’s corner smoothing, the model behind Apple’s continuous corners: 0 is the circular arc, 0.6 is close to iOS, 1 the softest. A smoothed corner spreads up to (1 + corner_smoothing) * radius along each side as a curve that eases into a shorter circular arc, so the edge leaves the straight with no visible kink. Where a side is too short, the radius stays and the smoothing gives way; two corners share a side in proportion to their radii. Each corner of a radius table is smoothed by the one value, and a "scoop" refuses it. image takes it too.

return rect {
    width = 160, height = 96, radius = 24, corner_smoothing = 0.6,
    background = "#1E1E2E", border_width = 2, border_color = "#89B4FA",
    animate = { corner_smoothing = 200 },
}

Fill, border, clip = "rounded", mask, effect.backdrop and the compositor_blur region all follow the one shape. Two things are approximate: a "box" shadow still takes the circular mean radius, and an image transition shader rounds a smoothed corner by a superellipse through its end points and middle, exact only at 0. A border’s inner edge is the outer curve scaled to the inner radii. corner_smoothing only reshapes the shape, so an animate tween on it runs without a layout.

A border follows the corners, round or scooped, as CSS draws it. Where two edges meet, the corner splits between their colours in proportion to their widths, so a lone edge curves round both corners and tapers away:

local function tile(label, color, props)
    props.width, props.height, props.radius = 104, 72, 16
    props.background = "#1E1E2E"
    props.border_color = props.border_color or color
    props.children = { text { content = label, foreground = "#CDD6F4", align_h = "center", align_v = "center" } }
    return rect(props)
end

return row {
    spacing = 16,
    children = {
        tile("round", "#89B4FA", { border_width = 2 }),
        tile("scoop", "#CBA6F7", { corner_shape = "scoop", border_width = 2 }),
        tile("Per-edge", "#A6E3A1", { border_width = { bottom = 3 } }),
        tile("Four colours", nil, {
            border_width = 3,
            border_color = { top = "#89B4FA", right = "#CBA6F7", bottom = "#F38BA8", left = "#A6E3A1" },
        }),
    },
}

Shape

shape = { commands = { .. } } replaces the rounded rectangle with any shape: one closed contour of path commands: an M, at least two more commands, then Z, with no other M or Z, no hole and at most 256 commands. A popover and its arrow, a speech bubble’s tail, a tab joined to its panel or a notched card is one shape, so the fill, the border, shadows (inset too), clip = "rounded", mask, effect.backdrop, effect.shader’s mantle_sdf, hit testing and the compositor_blur region run round it without a seam. It refuses radius, corner_shape and corner_smoothing, and its border takes one width and one colour or gradient.

Each coordinate follows the box’s size, so a shape fits content and "fill" widths:

"left" and "right" are x and "top" and "bottom" are y, so each is refused in the other’s slot. A placed coordinate is held to [-8192, 8192] px.

{ op = "corner", points = { x, y }, radius = r, corner_smoothing = s } (radius is required) rounds the turn at a point between the line in and the line out, with the continuous corners above. Two corners sharing a side split it, and a radius too big for its sides shrinks. A corner where the contour turns the other way is a concave fillet, so a tail can flare into its body. Points may reach past the box; the tail paints, takes clicks and casts a shadow there, and the box keeps its layout size. Children stay cut to the box rectangle under clip = "box", so a child hanging into the tail is neither drawn nor hit; under clip = "rounded" they follow the contour. A contour that crosses itself or winds twice is unsupported: paint fills by the non-zero rule, hit testing agrees, and mantle_sdf measures even-odd.

return column {
    padding = { top = 10 },
    children = {
        column {
            padding = 14,
            spacing = 4,
            background = "#1E1E2E",
            border_width = 2,
            border_color = "#89B4FA",
            shadows = { { blur = 12, offset = { y = 4 }, color = "#00000080" } },
            shape = { commands = {
                { op = "M", points = { 0, 20 } },
                { op = "corner", points = { 0, 0 }, radius = 12, corner_smoothing = 0.6 },
                { op = "corner", points = { { from = "center", px = -12 }, 0 }, radius = 4 },
                { op = "corner", points = { "50%", -10 }, radius = 3 },
                { op = "corner", points = { { from = "center", px = 12 }, 0 }, radius = 4 },
                { op = "corner", points = { "100%", 0 }, radius = 12, corner_smoothing = 0.6 },
                { op = "corner", points = { "100%", "100%" }, radius = 12, corner_smoothing = 0.6 },
                { op = "corner", points = { 0, "100%" }, radius = 12, corner_smoothing = 0.6 },
                { op = "Z", points = {} },
            } },
            children = {
                text { content = "Wi-Fi", font_weight = 700, foreground = "#CDD6F4" },
                text { content = "Connected to home", font_size = 12, foreground = "#A6ADC8" },
            },
        },
    },
}

animate = { shape = .. } tweens point by point, springs included, between two lists of the same commands; any other change snaps. A point written in px on one side and "NN%" on the other crosses as their resolved positions would. A corner’s radius holds at 0 and its smoothing in [0, 1] through an overshoot. The tween runs without a layout or Lua.

mantle_sdf measures a shape as a polygon of at most 256 points, each curve cut every 3° of turn; past 256 points the cut widens to 6°, 12° and so on, so the gradient bends by at most 3° at a point up to about 8 corners, more beyond (and straight segments past 256 are thinned). Hit testing reads the exact curves, so it and mantle_sdf can differ by a fraction of a pixel. A shadow on a shape is the silhouette’s, blurred offscreen like shadow_mode = "content", and an inset shadow takes one offscreen blur per paint where a rounded box takes one gradient quad.

Melt

shape = { melt = k, parts = { .. } } joins up to 8 rounded boxes into one outline: where two parts come within k px of each other, a fillet of about k px joins them, tangent to both, and elsewhere each part keeps its own edge. A circle tab grows out of a panel’s corner, and two bubbles drift together and fuse. Each part is { left = .., top = .., right = .., bottom = .., radius = r }. Its edges take the point forms above, so "100%" follows the box. radius is held to half the shorter side, so radius = 999 makes a circle or pill. melt is [0, 256], default 0, a plain union.

The engine computes the fillets, so a tween stays smooth at every frame. A hand-built contour cannot: animate.shape moves each fillet’s centre in a straight line, which pulls the fillet off the circle it should touch and leaves a spur on the edge until the tween ends. A melt tweens each part’s edges and radius plus melt, between two melts with the same number of parts. A melt against a contour or a different count snaps. A still melt is traced once. A tween traces it every frame, which averages 0.1 ms over a 400 by 300 panel collapsing into its tab.

Everything that follows shape follows a melt. Two separate blobs paint, take clicks and claim their regions as two. In the frame where two blobs first touch, the neck between them pinches to a point, as in any metaball. Parts that ring a hole leave it empty: the fill, clicks and an inset shadow skip it, and a border bands its edge from the parts’ side. A part shows from a quarter pixel across and grows from there, so a 2 px divider draws. The outline is cut 1024 px outside the box. mantle_sdf measures only the biggest outline, so a hole reads as inside and the other blobs as outside.

local function tab(right, bottom, melt)
    return { melt = melt, parts = {
        { left = 0, top = 0, right = 48, bottom = 48, radius = 999 },
        { left = 24, top = 24, right = right, bottom = bottom, radius = 14 },
    } }
end

local function bubbles(at)
    return { melt = 16, parts = {
        { left = 0, top = 0, right = 40, bottom = 40, radius = 999 },
        { left = at, top = 0, right = at + 40, bottom = 40, radius = 999 },
    } }
end

local function loop(a, b)
    return { duration = 1500, easing = "in_out_cubic", keyframes = { a, b, a }, loops = "infinite" }
end

return row {
    spacing = 24,
    children = {
        rect {
            width = 200, height = 120,
            background = "#1E1E2E", border_width = 2, border_color = "#89B4FA",
            shape = tab(200, 120, 12),
            animate = { shape = loop(tab(200, 120, 12), tab(40, 40, 6)) },
        },
        rect {
            width = 120, height = 40, align_v = "center",
            background = "#CBA6F7",
            shape = bubbles(80),
            animate = { shape = loop(bubbles(80), bubbles(30)) },
        },
    },
}

Gradients

background, mask and border_color take a gradient table.

background = {
    gradient = "linear",
    angle = 90,
    stops = { { 0, "#CBA6F7" }, { 0.5, "#F38BA8" }, { 1, "#89B4FA" } },
}

On border_color the gradient spans the node’s box and shows only where border_width draws, so width, radius, corner_shape and corner_smoothing shape the ring as for a flat colour.

return rect {
    width = 120, height = 40, radius = 12,
    border_width = 2,
    border_color = { gradient = "conic", stops = { { 0, "#CBA6F7" }, { 0.5, "#89B4FA" }, { 1, "#CBA6F7" } } },
}

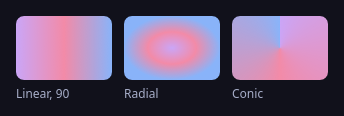

local stops = { { 0, "#CBA6F7" }, { 0.5, "#F38BA8" }, { 1, "#89B4FA" } }

local function swatch(label, fill)
    return column {
        spacing = 8,
        children = {
            rect { width = 112, height = 80, radius = 12, background = fill },
            text { content = label, font_size = 13, foreground = "#BAC2DE", align_h = "center" },
        },
    }
end

return row {
    spacing = 16,
    children = {
        swatch("linear, 90", { gradient = "linear", angle = 90, stops = stops }),
        swatch("radial", { gradient = "radial", stops = stops }),
        swatch("conic", { gradient = "conic", stops = stops }),
    },
}

Background layers

background also takes a list of layers, as CSS multiple backgrounds: the first is on top, like shadows. A layer is a colour, a gradient, or { fill = <colour or gradient>, blend = <mode> }, where blend is one of the blend modes. Every layer shares the box’s radius, corner_shape and corner_smoothing. At most 16; {} draws nothing. A single colour or gradient stays valid.

rect {
    width = 120, height = 40, radius = 12,
    background = {
        { gradient = "linear", stops = { { 0, "#FFFFFF33" }, { 1, "#FFFFFF00" } } },
        "#313244",
    },
}

Under animate, colour layers tween pairwise and a layer only one side has fades in or out. A gradient layer and a layer’s blend snap.

Clip

clip decides what a box cuts its children to. As CSS overflow: visible, a box without one cuts nothing: a child laid out, shadowed or transformed past it paints there and is hit there. A row, column or list with a scroll signal and every surface default to "box", since a viewport has to hide what it scrolled out. Set clip = "box" on a button whose ripple or hover scale-up must stay inside it. A list takes no clip: it cuts only when it scrolls.

A child’s translate, scale or rotate moves its own paint, never the parent’s clip: under a clipping parent, a child that transforms past the parent’s box is cut there (a rotated one by the box’s bounds in its own space).

A rounded clip draws in the order fill, children, border, so the border stays on top of children that reach the arc.

Mask

mask multiplies the alpha of the node’s own fill and border and of its whole subtree.

Name exactly one of source, node, or a gradient. A masked box draws its subtree offscreen every repaint and always cuts children to its box (to radius or the shape too under clip = "rounded"), even with clip = "none".

local networks = { "Home", "Office 5G", "Cafe Guest", "Library", "Studio", "Garden", "Lab", "Backup", "Hotspot", "Lobby",
    "Attic", "Garage" }
local rows = {}
for i, name in ipairs(networks) do
    rows[i] = row {
        width = "fill",
        padding = 10,
        spacing = 10,
        radius = 8,
        background = i == 1 and "#89B4FA26" or "#313244",
        children = {
            icon { name = "network-wireless-symbolic", size = 16, foreground = i == 1 and "#89B4FA" or "#A6ADC8", align_v = "center" },
            text { content = name, foreground = "#CDD6F4", align_v = "center" },
        },
    }
end

return column {
    width = 220,
    height = 240,
    padding = 8,
    spacing = 6,
    radius = 12,
    background = "#1E1E2E",
    scroll = scroll("feed"),
    mask = {
        gradient = "linear",
        stops = { { 0, "#00000000" }, { 0.1, "#000000" }, { 0.9, "#000000" }, { 1, "#00000000" } },
    },
    children = rows,
}

A scrolling list whose rows fade out at the top and bottom edges.

A mask can name an owned direct child by id with mask = { node = "shape" }. The child keeps its ordinary layout and reactive properties, but paints only into the mask and receives no input. Its RGB is ignored; transparent or hidden mask content cuts everything. invert = true reverses that alpha. Missing child ids fail the pass. The child’s opacity multiplies the mask; the parent’s opacity applies once to content. Mask subtrees can contain transforms, effects, and further masks.

rect {
    width = 160, height = 80, background = "#3366ffff",
    mask = { node = "shape" },
    children = {
        rect { id = "shape", width = 80, height = "fill", radius = 24,
            background = "#ffffffff" },
    },
}

The mask child contributes to Content sizing and flow spacing like other children. Use a stacking rect with explicit dimensions when the mask must not size the content. Mask alpha does not change the content’s input or desktop blur region.

Ring

ring = { width, color, offset } strokes the box width px thick in color, offset px (default 0, inside when negative) from its edge with a clear gap between: Material’s focus indicator (3 px, 2 px offset) and CSS outline with outline-offset. width = 0, a clear color or an inset past the box’s middle draws nothing. The gap stays offset all round, so a rounded corner’s ring has radius radius + offset + width outside and follows corner_smoothing and shape too. It is paint only: no layout space or hit area, drawn over the children. The node’s own clip does not cut it, a clipping ancestor does as it does a shadow, and animate.ring tweens all three numbers.

local ring = focus_visible("save")

return panel {
    id = "dialog",
    layer = "top",
    keyboard_interactivity = "on_demand",
    child = rect {
        width = 80,
        height = 32,
        radius = 8,
        accessible_name = "Save",
        focus_ring = false,
        focus_visible = ring,
        ring = ring:map(function(on) return { width = on and 3 or 0, color = "#89b4fa", offset = 2 } end),
        on_click = function() end,
    },
}

Shadows

shadows is a list of layers, CSS’s box-shadow: a, b: the first layer is on top and a node takes at most 16, inset and outer together. A layer is a table, and draws when its color has alpha above 0 and at least one of blur, offset or spread is set. A single shadow is shadows = { { blur = 8 } }.

Non-box nodes (text, icon, image, …) have no box to cast, so their shadow is always the content’s: text gets a glyph-shaped shadow. The same unfilled, bordered box in each mode:

local function card(label, mode)
    return row {
        padding = 14,
        spacing = 10,
        radius = 12,
        border_width = 2,
        border_color = "#89B4FA",
        shadow_mode = mode,
        shadows = { { color = "#000000", blur = 4, offset = { x = 5, y = 6 } } },
        children = {
            icon { name = "starred-symbolic", size = 22, foreground = "#F9E2AF", align_v = "center" },
            text { content = label, font_size = 20, foreground = "#CDD6F4", align_v = "center" },
        },
    }
end

return row {
    padding = 28,
    spacing = 28,
    radius = 16,
    background = "#6C7086",
    children = { card("box", "box"), card("content", "content") },
}

"box" casts the rounded box and cuts the shadow out under it; "content" casts the border ring and the glyphs.

Layered shadows

A tight key shadow under a wide ambient one:

rect {
    width = 160,
    height = 64,
    radius = 12,
    background = "#1E1E2E",
    shadows = {
        { color = "#0000004D", blur = 2, offset = { y = 1 } },
        { color = "#00000026", blur = 6, offset = { y = 2 }, spread = 2 },
    },
}

Inset shadows

inset = true shades the inside of the box: the padding box is filled with color everywhere outside a hole, the box moved by offset and shrunk by spread, feathered by blur. The box’s shape clips it, and it draws above every background layer and under the children and the border. It needs shadow_mode = "box" on a box kind; text, icon, image and the other non-box kinds refuse it. The hole takes the mean of the box’s corner radii.

rect {
    width = 160,
    height = 64,
    radius = 12,
    background = "#1E1E2E",
    shadows = { { color = "#00000080", blur = 8, offset = { y = 2 }, inset = true } },
}

In content mode each layer is a blur pass over the same offscreen, so it costs one blur per layer. animate.shadows tweens layer by layer, and a layer only one side has fades in or out at its own geometry. A spring on shadows restarts from rest when its target changes mid-flight.

Blurs

Four blurs read four different things. Sigmas are in logical px, [0, 8192], 0 is off. source_blur is a fast box approximation; the others are Gaussian.

compositor_blur = true. Mantle sends the compositor a region, through ext-background-effect-v1, made of every compositor_blur = true box on the surface: rounded to radius, scooped or shaped as its shape, cut by ancestor clips, followed through transforms (a rotated box gets a rotated region; ancestor clips stay upright), and dropped while the node is invisible or at opacity 0. It ignores mask. The compositor decides strength, noise, xray and whether to blur at all; a compositor without the protocol or its blur capability gives nothing, and no error. It is never inferred from a translucent background; the background alpha only decides how much of the blurred desktop shows through.

source_blur. The blur is baked into the decoded pixels, which are stored cropped to the box under fit = "cover", so it is exact there. Under "contain" or "stretch" the stored pixels are rescaled and the blur with them. Animations ignore it. Changing it re-decodes; under async = true the image draws nothing until that lands, and retain does not cover it (the source did not change). See image.

panel {
    id = "bar",
    layer = "top",
    anchor = { top = true, left = true, right = true },
    height = 36,
    exclusive_zone = true,
    background = "#1E1E2E99",
    compositor_blur = true,
    child = row { width = "fill", padding = { left = 12, right = 12 }, children = { clock } },
}

A bar whose 60% fill tints the compositor-blurred desktop behind it.

rect {
    width = 360,
    height = 200,
    radius = 16,
    clip = "rounded",
    children = {
        image { source = "/usr/share/backgrounds/default.png", width = "fill", height = "fill", async = true },
        row {
            align_h = "center",
            align_v = "center",
            padding = { left = 16, right = 16, top = 8, bottom = 8 },
            spacing = 10,
            radius = 999,
            background = "#FFFFFF1F",
            border_width = 1,
            border_color = "#FFFFFF33",
            effect = { backdrop = { blur = 12 } },
            children = {
                text { content = "12:45", font_size = 20, font_weight = 700, foreground = "#FFFFFF", align_v = "center" },
                text { content = "Thu 24 Sep", font_size = 13, foreground = "#FFFFFFCC", align_v = "center" },
            },
        },
    },
}

A frosted pill: the image is painted first, so the pill’s effect.backdrop.blur blurs the image under its rounded shape, and the fill tints it. The same pattern over a full-screen image frosts a lock screen’s wallpaper.

Colour filters

effect also takes CSS saturate(), brightness() and contrast(), on the node’s subtree and, in backdrop, on the pixels under a box. Each is a factor in [0, 8], default 1, which is off and costs nothing. At one level they apply in a fixed order: blur, then saturate, brightness, contrast, whatever order the table lists them in. They work on the straight sRGB colour, as CSS’s do, so a translucent fill keeps its alpha. A colour filter folds into the blur’s last pass; a backdrop with only a colour filter still copies what is under the box once, and a node with a colour filter is drawn into a layer like one with effect.blur.

rect {
    width = 360,
    height = 120,
    radius = 16,
    background = "#FFFFFF1F",
    effect = { backdrop = { blur = 45, saturate = 2 } },
}

The usual glass: CSS backdrop-filter: blur(45px) saturate(2).

Progressive blur

effect.backdrop.mask takes the values of a node’s mask (a gradient or a source image; not a node) and scales the glass’s coverage. Where the mask is clear the ground shows through untouched, with no blur, colour filter or backdrop shader output; where it is opaque the glass is whole; between, it is a crossfade of the two. It is the soft edge under a toolbar, or a panel whose frost feathers out. The mask never touches the node’s fill, border or children.

rect {
    width = 360,
    height = 200,
    radius = 16,
    clip = "rounded",
    children = {
        image { source = "/usr/share/backgrounds/default.png", width = "fill", height = "fill", async = true },
        rect {
            width = "fill",
            height = 130,
            align_v = "end",
            effect = {
                backdrop = {
                    blur = 10,
                    mask = { gradient = "linear", angle = 0, stops = { { 0, "#FFFFFFFF" }, { 1, "#FFFFFF00" } } },
                },
            },
        },
    },
}

A crossfade, not a blur radius that falls off: at a large sigma the faded part reads as a blend of the sharp and the blurred picture. invert = true flips the mask as on a node.

Shader effects

effect.shader runs a fragment shader of yours over the node’s painted subtree: the fill, children and border drawn offscreen, which the program reads as a texture and replaces with its output. It is how a duotone, a chromatic aberration, a ripple or a glow that follows the node’s own shape is a config’s to write. A shader node draws one quad and reads nothing; this reads the pixels.

rect {
    width = 240,
    height = 80,
    radius = 20,
    corner_smoothing = 0.6,
    background = "#335577",
    effect = {
        shader = {
            source = mantle.config_dir .. "/shaders/shape.frag",
            params = { width = 3, tint = { 1, 0.8, 0.2, 1 } },
            padding = 4,
        },
    },
}

The .frag contract is the shader node’s with these changes. Write void main() and set fragColor to premultiplied RGBA.

Unlike a shader node, no step follows your main: the output is not rounded to radius and not multiplied by opacity, since the subtree already carries its opacity. Cut to the shape yourself with mantle_sdf when you want to.

uniform float width;
uniform vec4 tint;

void main() {
    vec4 body = mantle_input(v_uv);
    float d = mantle_sdf(v_uv * u_size);
    // A rim `width` px deep just inside the shape, over the subtree.
    float rim = smoothstep(-width - 0.5, -width + 0.5, d) * (1.0 - smoothstep(-0.5, 0.5, d));
    fragColor = body * (1.0 - rim * tint.a) + vec4(tint.rgb * tint.a, tint.a) * rim;
}

Order: the shader reads the node after its fill, children and border, and its output goes through shadows (content mode), then effect.blur and the colour filters. padding is cut at the same clips as a shadow, so a node at a surface’s edge has no room to pad into.

Backdrop input

With input = "backdrop" the program reads what this surface already painted under the box and padding around it, never the desktop behind the surface. It runs before the node paints, beside effect.backdrop: one copy of those pixels feeds both, and mantle_input_blurred reads the frost the backdrop filters made from it. The output replaces the whole read area, padding included, mixed with the original pixels by the node’s opacity; the node’s fill, children and border paint over it. Return mantle_input(uv) to leave a pixel as it was, and do so outside the shape, or the pixel comes out as whatever the program returns. Offsetting the coordinate by the shape’s distance is a refraction. Box kinds only.

rect {
    width = 200,
    height = 64,
    radius = 32,
    background = "#FFFFFF14",
    effect = {
        backdrop = { blur = 6 },
        shader = { source = mantle.config_dir .. "/shaders/lens.frag", input = "backdrop", padding = 8 },
    },
}

void main() {
    vec2 p = v_uv * u_size;
    float d = mantle_sdf(p);
    // Up to 8 px of pull toward the centre in the outer 12 px of the shape.
    vec2 toward = normalize(u_size * 0.5 - p + 1e-4);
    vec2 bent = v_uv + toward * smoothstep(-12.0, 0.0, d) * 8.0 / u_size;
    float inside = 1.0 - smoothstep(-0.5, 0.5, d);
    fragColor = mix(mantle_input(v_uv), mantle_input_blurred(bent), inside);
}

Desktop input

input = "desktop" is "backdrop" with the desktop behind the surface under it: windows, the wallpaper and other clients’ layers, so a lens bends what is on screen, not only what this shell drew. The engine captures the read area through wlr-screencopy, and the capture holds this surface too, so it takes out what the surface last presented there. Until the first capture lands the program does not run and the area shows through.

The shader contract is Backdrop input’s: return mantle_input(uv) to leave a pixel. What the surface presents of the output is the output itself, at most 88% opaque so the next capture can still unmix it, except where it shows the desktop: there nothing is presented and the live desktop stays. Frost with effect.backdrop and bend with the shader: both run in this renderer, so compositor_blur is not needed.

This reads other clients’ pixels through screen capture, which the compositor may refuse or ask about. Nothing is captured while the node does not draw: hidden, at opacity = 0, or on an unmapped surface.

panel {
    id = "lens",
    layer = "overlay",
    anchor = { top = true },
    margin = { top = 40 },
    exclusive_zone = "ignore",
    width = 320,
    height = 96,
    child = rect {
        width = "fill",
        height = "fill",
        radius = 48,
        effect = { shader = { source = mantle.config_dir .. "/shaders/lens.frag", input = "desktop" } },
    },
}

Blend modes

blend composites a node, a background layer ({ fill = .., blend = .. }) or a shadows layer onto what this surface painted under it, by CSS mix-blend-mode’s formulas: "normal" (the default), "multiply", "screen", "overlay", "darken", "lighten", "color_dodge", "color_burn", "hard_light", "soft_light", "difference", "exclusion", "hue", "saturation", "color", "luminosity", and Apple’s "plus_lighter" and "plus_darker".

rect {
    width = 120, height = 40, radius = 12,
    blend = "plus_lighter",
    background = { { fill = "#FFFFFF33", blend = "overlay" }, "#1E1E2E" },
    shadows = { { color = "#00000066", blur = 12, blend = "multiply" } },
}

Inside a mask, effect layer or content-mode shadow the blend sees only what that ancestor drew so far, as a glass does; clip = "rounded" is no barrier. "normal" costs nothing. Any other mode draws the blended part offscreen, copies the pixels under it and runs one pass: about 0.1 ms to 0.2 ms per blended part for a 400x300 box on integrated graphics. A box with one opaque "normal" colour layer is opaque whatever blends above it; a blended node is never opaque. blend snaps under animate.

Combining effects

One node paints in this order, each step over the last. The order is fixed: the keys of effect apply in it, whatever order the table lists them in.

1. Backdrop (effect.backdrop): replaces the pixels under the box with their blur, then saturate, brightness and contrast; a backdrop shader instead replaces them with its output, from the same copy. It reads what precedes the node, so it comes first.
2. Shadow, when it is a gradient quad or a silhouette.
3. Body: fill, children in z order, border. With a mask or a clip = "rounded" the body goes through an offscreen pass. A blended background or shadows layer blends as it draws.
4. Layer: for a content effect.shader, effect.blur, a colour filter, a layered shadow or a node blend, the shadow and body are drawn offscreen, run through the shader, the content shadow cast from that, then blurred and recoloured.
5. Blend: the finished layer composites onto what is under it by the node’s blend. It is last because it is how the result meets the backdrop, as CSS applies mix-blend-mode after filter.
6. Transform (scale, rotate, translate) wraps all of the above.

How do I…

Frosted glass panel

panel {
    id = "sheet",
    layer = "top",
    anchor = { top = true, right = true },
    margin = 8,
    child = column {
        width = 280,
        padding = 16,
        spacing = 8,
        radius = 16,
        background = "#1E1E2EB3",
        border_width = 1,
        border_color = "#FFFFFF2E",
        compositor_blur = true,
        children = { text { content = "Wi-Fi", font_size = 14, foreground = "#CDD6F4" } },
    },
}

The compositor blurs the desktop under the rounded sheet only; the rest of the surface stays clear. A faint light border separates glass from glass.

Card that lifts on hover

local lifted = hover("card_hover")
column {
    hover = lifted,
    padding = 16,
    radius = 12,
    background = "#313244",
    shadows = { {
        color = "#00000099",
        blur = lifted:map(function(on) return on and 36 or 12 end),
        offset = lifted:map(function(on) return { x = 0, y = on and 20 or 6 } end),
    } },
    animate = { shadows = 200 },
    children = { text { content = "Hover me" } },
}

hover drives the shadow and animate eases it. Leave room around the card when its parent clips: a scroll viewport or the surface cuts the shadow; mantle check warns when the surface does.

Pill button

local hovered = hover("save_hover")
rect {
    hover = hovered,
    padding = { left = 16, right = 16, top = 6, bottom = 6 },
    radius = 999,
    background = hovered:map(function(on) return on and "#89B4FA59" or "#89B4FA33" end),
    border_width = 1,
    border_color = "#89B4FA66",
    animate = { background = 150 },
    on_click = function() print("saved") end,
    children = { text { content = "Save", foreground = "#CDD6F4" } },
}

A radius past half the height makes the ends round whatever the label’s width.

Gradient border

rect {
    padding = 2,
    radius = 14,
    background = { gradient = "linear", angle = 135, stops = { { 0, "#CBA6F7" }, { 1, "#89B4FA" } } },
    children = {
        row {
            padding = { left = 18, right = 18, top = 12, bottom = 12 },
            spacing = 8,
            radius = 12,
            background = "#1E1E2E",
            children = {
                icon { name = "starred-symbolic", size = 16, foreground = "#CBA6F7", align_v = "center" },
                text { content = "Upgrade to Pro", font_weight = 700, foreground = "#CDD6F4", align_v = "center" },
            },
        },
    },
}

This paints the gradient as an outer fill and covers all but a 2px ring with an opaque inner box; keep the inner radius the outer radius minus the ring width. For a ring on one box, give border_color the gradient instead (Gradients).

Circular avatar

row {
    padding = 12,
    spacing = 12,
    radius = 14,
    background = "#1E1E2E",
    children = {
        rect {
            width = 56,
            height = 56,
            radius = 28,
            clip = "rounded",
            border_width = 2,
            border_color = "#89B4FA",
            children = { image { source = "/var/lib/AccountsService/icons/user", width = "fill", height = "fill" } },
        },
        column {
            spacing = 2,
            align_v = "center",
            children = {
                text { content = "user", font_size = 15, font_weight = 700, foreground = "#CDD6F4" },
                text { content = "Signed in", font_size = 12, foreground = "#A6ADC8" },
            },
        },
    },
}

clip = "rounded" cuts the image to the circle, and the border paints over the image’s edge.

Dim the background behind a modal

panel {
    id = "modal",
    layer = "overlay",
    anchor = { top = true, bottom = true, left = true, right = true },
    width = "fill",
    height = "fill",
    exclusive_zone = "ignore",
    keyboard_interactivity = "on_demand",
    child = rect {
        width = "fill",
        height = "fill",
        children = {
            rect { width = "fill", height = "fill", background = "#11111B99" },
            column {
                align_h = "center",
                align_v = "center",
                width = 360,
                padding = 24,
                spacing = 8,
                radius = 16,
                background = "#1E1E2EE0",
                compositor_blur = true,
                shadows = { { color = "#00000080", blur = 32 } },
                children = {
                    text { content = "Log out?", font_size = 18, foreground = "#CDD6F4" },
                    text { content = "Unsaved work in open apps will be lost.", foreground = "#A6ADC8" },
                },
            },
        },
    },
}

A full-screen panel whose first child is a translucent scrim and whose second is the dialog. Dim with a colour rather than compositor_blur = true on the scrim: the compositor’s blur does not fade with opacity, so a fading scrim would blur at full strength until it hits 0.

Gotchas

See also: nodes, surfaces, animation, input, glossary.

Source: allowlist, parsers, effect parsers, paint style, paint order, canvas, clips and masks, effects, shapes, blur region, compositor push.
