Animation

animate makes a node’s properties move to a new value instead of snapping: on a hover, a level or a toggle, as a node enters or leaves the tree, or in a loop like a spinner. A tween is one property moving from the value on screen to the value a new pass resolves. The engine runs every tween on its own surface’s compositor frames, so a panel on a 60 Hz output moves at 60 Hz beside one at 165 Hz; no Lua runs between the pass that starts a tween and its last frame.

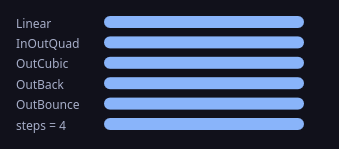

Six knobs slide 200 px over 600 ms. Each uses a different easing; "out_back" passes the end and comes back:

local go = state("go", false)

local function lane(label, easing, color)
    return row {
        spacing = 12,
        children = {
            text { content = label, width = 88, font_size = 13, foreground = "#bac2de" },
            rect {
                width = 216,
                height = 16,
                radius = 8,
                background = "#313244",
                children = {
                    rect {
                        width = 16,
                        height = 16,
                        radius = 8,
                        background = color,
                        translate = go:map(function(on) return { x = on and 200 or 0 } end),
                        animate = { translate = { duration = 600, easing = easing } },
                    },
                },
            },
        },
    }
end

return column {
    padding = 16,
    spacing = 10,
    radius = 12,
    background = "#1e1e2e",
    children = {
        text { content = "Six easings, 600 ms", font_size = 14, font_weight = 700, foreground = "#cdd6f4" },
        lane("linear", "linear", "#89b4fa"),
        lane("in_out_quad", "in_out_quad", "#cba6f7"),
        lane("out_cubic", "out_cubic", "#a6e3a1"),
        lane("out_back", "out_back", "#fab387"),
        lane("out_bounce", "out_bounce", "#f38ba8"),
        lane("steps = 4", { steps = 4 }, "#f9e2af"),
    },
}

Run mantle set go true to start the race in your shell, then mantle set go false to reset it.

Mental model

A motion has two inputs: the target, the value a pass resolves, and the entry, how to get there (duration, easing, delay, from, keyframes or spring). Both are ordinary Lua values, so either may be a signal.

• A changed target starts a tween from the value on screen. The same target resolved again does not.
• A changed entry retimes the run under way; it starts nothing by itself. Keyframes are the exception: new frames, timing, loops or run start a new run.
• An entry field read from a signal is how one property gets different timing per direction (recipe).

How a tween starts

animate is a table from property names to entries. When a pass resolves a different value for a named property, the node moves from the value on screen to the new one. A pass that re-resolves the same value leaves a running tween alone, so an unrelated signal does not restart the motion. animate itself may be a signal (animate = shown:map(...)), and so may an entry or a field inside one. An entry’s timing read from a signal applies to the run already under way: a new duration mid-tween moves where the run is.

What can animate

Any property the node’s kind accepts (nodes) can be named; the value’s shape decides whether it moves. The ones that do:

An image crossfading between sources uses its own transition property, not animate (image).

Range clamp

Every frame’s value is clamped to the property’s range, which catches overshoot from Back, Elastic, a Bezier with y outside [0, 1], or a spring. Only margin, translate, rotate, progress and a shadows layer’s offset and spread may go negative. padding, spacing and icon size have no range as plain values but tween within [0, 8192]. Path coordinates stay within [-8192, 8192] and arc radii at 0 or more.

Layout cost

Slide with translate and grow on hover with scale when surrounding nodes should stay put. Both skip layout; width and margin lay out the surface on every animation frame.

Lua cost

Let animate drive motion. A timer that sets a signal every frame runs Lua and resolves the surface on every tick. animate computes each frame in the engine, about 20 times cheaper, at the display’s refresh rate.

A progress ring that fills forever, with no Lua per frame:

local function ring(sweep)
    return { { op = "A", points = { 16, 16, 13, -90, sweep } } }
end

return row {
    padding = 16,
    spacing = 12,
    radius = 12,
    background = "#1e1e2e",
    children = {
        rect {
            width = 32,
            height = 32,
            align_v = "center",
            children = {
                path { width = 32, height = 32, stroke = "#313244", stroke_width = 4, commands = ring(360) },
                path {
                    width = 32,
                    height = 32,
                    stroke = "#89b4fa",
                    stroke_width = 4,
                    commands = ring(0),
                    animate = {
                        commands = { duration = 1200, easing = "linear", keyframes = { ring(0), ring(360) }, loops = "infinite" },
                    },
                },
            },
        },
        text { content = "Syncing photos", font_size = 14, foreground = "#cdd6f4", align_v = "center" },
    },
}

Not a timer that redraws it 30 times a second:

local tick = state("tick", 0)
interval(33, function() tick:set(tick:get() + 1) end)

return path {
    width = 32,
    height = 32,
    stroke = "#89b4fa",
    stroke_width = 4,
    commands = tick:map(function(n) return { { op = "A", points = { 16, 16, 13, -90, n % 36 * 10 } } } end),
}

Live data, like a volume level, still comes from a signal: give it an animate entry and the engine eases between updates.

Entry keys

An entry is a bare number (a duration in ms with the default easing) or a table. Every entry picks one of three motions: eased (duration), keyframes (keyframes + duration) or spring (spring). Beside keyframes, a spring is each segment’s curve instead.

A duration or delay that is not a number ("200") is refused rather than read as absent.

Easing names. A name is case-sensitive; an unknown one is refused with the list.

in_ starts slow, out_ ends slow, in_out_ does both. The back and elastic families overshoot, and the range clamp above catches it; bounce stays inside the range.

Spring

A spring has no duration: stiffness and damping decide how it settles. Use one for a target that changes mid-flight, like a held volume key or a pointer-following highlight. The spring carries its velocity into the new motion; an eased tween restarts from a standstill and lags behind. The carried velocity is capped at 100 times the new distance per second, so a target set almost where the value already is cannot fling it past. A spring that replaces an eased tween starts at rest.

There is no mass: it would only rescale the other two. A spring stops within a thousandth of its travel and never runs longer than 60 s.

The same translate change on three springs of stiffness = 400, where critical damping is 40. The underdamped knob passes the others’ resting point and swings back:

local go = state("go", false)

local function lane(label, damping, color)
    return row {
        spacing = 12,
        children = {
            text { content = label, width = 150, font_size = 13, foreground = "#bac2de" },
            rect {
                width = 216,
                height = 16,
                radius = 8,
                background = "#313244",
                children = {
                    rect {
                        width = 16,
                        height = 16,
                        radius = 8,
                        background = color,
                        translate = go:map(function(on) return { x = on and 160 or 0 } end),
                        animate = { translate = { spring = { stiffness = 400, damping = damping } } },
                    },
                },
            },
        },
    }
end

return column {
    padding = 16,
    spacing = 10,
    radius = 12,
    background = "#1e1e2e",
    children = {
        text { content = "Springs, stiffness 400", font_size = 14, font_weight = 700, foreground = "#cdd6f4" },
        lane("damping = 12, rings", 12, "#cba6f7"),
        lane("damping = 40, critical", 40, "#a6e3a1"),
        lane("damping = 120, crawls", 120, "#fab387"),
    },
}

Keyframes

A keyframes entry walks a list of values instead of easing to the resolved one. While it runs, it owns the property: the value the pass resolves is ignored.

To replay a run, change run: a counter that goes up on each trigger starts the same frames again, whether the last run is over or not, and the property never snaps in between. pulse is the other way: it adds the entry for a window after its source changes and takes it away again, so the property snaps back when the window closes.

local taps = state("taps", 0)
-- Three 120 ms segments: `duration` times each one, so the run takes 360 ms.
local BOUNCE = { scale = { duration = 120, easing = "out_quad", keyframes = { 1, 1.25, 0.9, 1 } } }

return panel {
    id = "bar",
    layer = "top",
    anchor = { top = true },
    padding = 8, -- room for the overshoot: a scaled node paints past its box
    child = rect {
        width = 48,
        height = 48,
        radius = 12,
        background = "#313244",
        on_click = function() taps:set(taps:get() + 1) end,
        -- pulse is true for 400 ms after each tap: the entry appears, plays once, then goes.
        animate = pulse(taps, 400):map(function(on) return on and BOUNCE or {} end),
        children = { icon { name = "starred-symbolic", size = 24, foreground = "#f9e2af", align_h = "center", align_v = "center" } },
    },
}

An endless spinner needs no signal. A hidden spinner stops requesting frames by itself:

local busy = state("busy", true)
local SPIN = { rotate = { duration = 1000, easing = "linear", keyframes = { 0, 360 }, loops = "infinite" } }

return panel {
    id = "bar",
    layer = "top",
    anchor = { top = true },
    child = row {
        padding = 10,
        spacing = 8,
        radius = 18,
        background = "#1e1e2e",
        visible = busy,
        children = {
            icon { name = "view-refresh-symbolic", size = 16, foreground = "#89b4fa", align_v = "center", animate = SPIN },
            text { content = "Checking for updates", font_size = 13, foreground = "#cdd6f4", align_v = "center" },
        },
    },
}

Spring segments

A spring on a keyframe entry, or on one frame, replaces easing for those segments. Each segment starts the spring from rest and runs it in real time, so stiffness and damping look the same as on a plain spring and overshoot meets the same range clamp. The segment’s duration still decides when the next frame starts: the frame lands exactly at that instant, and a spring that has not settled by then jumps the rest of the way. Give a ringing step a duration of at least its settle time, roughly 14 / damping seconds, to avoid the jump.

-- A quarter turn every 800 ms, overshooting and settling on each; 14 / 18 is under 0.8 s.
local TICK = {
    rotate = {
        duration = 800,
        spring = { stiffness = 300, damping = 18 },
        keyframes = { 0, 90, 180, 270, 360 },
        loops = "infinite",
    },
}

return icon { name = "view-refresh-symbolic", size = 24, foreground = "#cdd6f4", animate = TICK }

Move

animate.move eases a matched node when a scene pass changes its laid-out position. It takes a duration in milliseconds, or { duration = 180, easing = "out_cubic", delay = 0 }. The easing and delay have the same meanings as a property tween. from, keyframes, loops and spring are refused. A new node has no previous position, so it appears at its new rect.

local card = rect {
    id = "notice-42",
    width = 280,
    height = 60,
    animate = { move = { duration = 180, easing = "out_cubic" } },
}
return card

Use a stable id on a child that can change position in its parent’s children, or a list key for each item. Without one, id-less siblings match by position; removing the first item can pair the next item with its old rect. A removed child’s animate.exit paints from its current position while live siblings move into the gap. It still takes no flow space or input.

A move tracks the node’s position relative to its parent. If an ancestor shifts, give that ancestor animate.move too.

The solver, geometry and pointer callbacks report the destination rect throughout the move. Paint, hit-testing, text links, carets, input regions and background blur follow the moving pixels. A second layout change starts from the last painted position. Scrolling and paint-only property tweens do not start a move; an already running move keeps advancing on compositor frames. A parent with clip, a scroll viewport or the surface can cut moving pixels; leave room there.

Scroll

animate.scroll on a row, column or list bound to a scroll signal eases each mouse-wheel notch. It takes a duration in milliseconds, an eased entry or a spring; keyframes are refused. Notches add to a target that stops at either end of the content, and a notch mid-run eases on from the offset on screen, carrying a spring’s velocity. The signal holds the offset on screen, so a map of it reflows with every frame. :reveal eases the same way, to the least move from the target that shows the child, as do :scroll_to(offset) and :scroll_by(delta), which adds to the target. A touchpad or a high-resolution wheel, which report fractions of a notch, and reset_on_close move the offset at once and stop the run. The offset never passes the ends, even under an overshooting easing or content that shrinks mid-run; content that grows mid-run does not move the target. A run hidden with its container finishes while hidden: shown again, it lands on its target on the next frame.

local rows = {}
for i = 1, 40 do rows[i] = text { content = "Row " .. i } end
return column {
    width = 300,
    height = 200,
    scroll = scroll("feed"),
    animate = { scroll = { duration = 160, easing = "out_cubic" } },
    children = rows,
}

Exit

animate.exit animates a child after its parent stops returning it: a notification removed from a list, or a card dropped from children. The block holds one timing for every property, and the values to ease to.

exit = { duration = 150, easing = "in_quad", opacity = 0, translate = { y = 16 } }

Hiding a surface skips the exit, so drop the child from children and hold the surface open with delay until the exit has played. The card below slides up and fades in on show; the shot plays the hide, down and out over 150 ms:

local shown = state("osd_shown", false)
-- Keep the surface mapped 150 ms past `shown`, so the card's exit can play.
local mapped = computed({ shown, delay(shown, 150) }, function(now, was)
    return now == true or was == true
end)

local card = row {
    width = 260,
    padding = 14,
    spacing = 12,
    radius = 14,
    background = "#1e1e2ee6",
    opacity = 1,
    translate = { y = 0 },
    children = {
        icon { name = "audio-volume-medium-symbolic", size = 20, foreground = "#89b4fa", align_v = "center" },
        rect {
            width = "fill",
            height = 6,
            radius = 3,
            background = "#313244",
            align_v = "center",
            children = { rect { width = "42%", height = 6, radius = 3, background = "#89b4fa" } },
        },
        text { content = "42%", font_size = 13, foreground = "#cdd6f4", align_v = "center" },
    },
    animate = {
        opacity = { duration = 200, from = 0 },
        translate = { duration = 200, easing = "out_cubic", from = { y = 16 } },
        exit = { duration = 150, easing = "in_quad", opacity = 0, translate = { y = 16 } },
    },
}

return panel {
    id = "osd",
    layer = "overlay",
    anchor = { bottom = true },
    width = 260,
    height = 64, -- room for the exit's 16 px slide
    visible = mapped,
    child = column {
        height = "fill",
        children = shown:map(function(on) return on and { card } or {} end),
    },
}

settled: know when a node stops moving

settled = settled("name") on a node gives a read-only signal the engine writes: false while any animate tween on that node is running, true otherwise. Swap content, unmount a node or start a second motion when the first ends, without a timer that guesses its duration.

One name is one signal across reloads. Nodes that share it read true only when none of them moves. Nothing is walked until the shell has called settled(...) or elided(...) in its current evaluation. Do not drive a node’s own animated target from its own settled: the target changes when the motion ends, which starts the next motion, and the node bounces once per tween end.

The sheet below collapses over 300 ms; the note appears when the collapse ends, not when it starts. In the pass that sets open, sheet_still still reads true, but the follow-up pass runs before the frame is drawn, so the note never paints early:

local open = state("sheet_open", true)
local sheet_still = settled("sheet")

return column {
    spacing = 8,
    children = {
        rect {
            width = 200,
            height = open:map(function(on) return on and 120 or 24 end),
            background = "#313244",
            settled = sheet_still,
            on_click = function() open:set(not open:get()) end,
            animate = { height = { duration = 300, easing = "out_cubic" } },
        },
        text {
            content = "Collapsed",
            foreground = "#cdd6f4",
            visible = computed({ open, sheet_still }, function(on, still) return not on and still end),
        },
    },
}

How do I…

Fade a tooltip popup in and out

A popup closing skips the exit, so switch the card out of children and let delay hold the popup open while it fades.

local over = hover("clock")
-- Stay mapped 120 ms after the pointer leaves, so the card's exit can play.
local mapped = computed({ over, delay(over, 120) }, function(now, was)
    return now == true or was == true
end)

local card = rect {
    width = 180,
    height = 32,
    radius = 6,
    background = "#1e1e2e",
    opacity = 1,
    animate = { opacity = { duration = 120, from = 0 }, exit = { duration = 120, opacity = 0 } },
    children = { text { content = "Thursday, 24 September", padding = 8 } },
}

return {
    panel { id = "bar", layer = "top", anchor = { top = true }, child = text { content = "12:30", padding = 8, hover = over } },
    popup {
        id = "clock_tooltip",
        parent = "bar",
        anchor_rect = hover_rect("clock"),
        anchor = "bottom",
        gravity = "bottom",
        grab = false,
        visible = mapped,
        child = rect {
            children = over:map(function(on) return on and { card } or {} end),
        },
    },
}

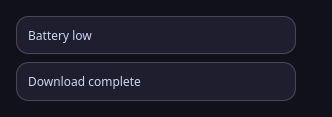

Stagger a list’s entrance

Give each item a delay that grows with its index. delay holds the from value, so a card waits invisible for its turn.

local go = state("go", false)
local NOTES = {
    { icon = "battery-caution-symbolic", color = "#fab387", title = "Battery low", body = "12% remaining" },
    { icon = "view-refresh-symbolic", color = "#89b4fa", title = "Update ready", body = "Restart to install" },
    { icon = "notification-symbolic", color = "#a6e3a1", title = "Download complete", body = "photos.zip, 48 MB" },
}

local function card(index, note)
    local wait = (index - 1) * 250
    return row {
        width = 260,
        padding = 12,
        spacing = 12,
        radius = 12,
        background = "#1e1e2e",
        opacity = 1,
        translate = { x = 0 },
        animate = {
            opacity = { duration = 300, delay = wait, from = 0 },
            translate = { duration = 300, delay = wait, easing = "out_cubic", from = { x = -24 } },
        },
        children = {
            icon { name = note.icon, size = 20, foreground = note.color, align_v = "center" },
            column {
                spacing = 2,
                children = {
                    text { content = note.title, font_size = 13, font_weight = 700, foreground = "#cdd6f4" },
                    text { content = note.body, font_size = 12, foreground = "#a6adc8" },
                },
            },
        },
    }
end

return column {
    spacing = 8,
    children = go:map(function(on)
        local cards = {}
        for index, note in ipairs(on and NOTES or {}) do
            cards[index] = card(index, note)
        end
        return cards
    end),
}

Slide a notification out

Dropping a child makes it leave. Here each card sits in a slot of fixed height, so a dismissed card slides out in place and the others stay put. Remove the item from a keyed list instead to have the rest close up at once.

local dismissed = state("dismissed", {})
local NOTES = {
    { icon = "battery-caution-symbolic", color = "#fab387", title = "Battery low", body = "12% remaining" },
    { icon = "view-refresh-symbolic", color = "#89b4fa", title = "Update ready", body = "Restart to install" },
    { icon = "notification-symbolic", color = "#a6e3a1", title = "Download complete", body = "photos.zip, 48 MB" },
}

local function dismiss(title)
    local gone = { [title] = true }
    for other in pairs(dismissed:get()) do gone[other] = true end
    dismissed:set(gone)
end

local function card(note)
    return row {
        width = 280,
        height = 60,
        padding = 12,
        spacing = 12,
        radius = 12,
        background = "#1e1e2e",
        border_width = 1,
        border_color = "#45475a",
        on_click = function() dismiss(note.title) end,
        animate = { exit = { duration = 200, easing = "in_cubic", opacity = 0, translate = { x = 16 } } },
        children = {
            icon { name = note.icon, size = 20, foreground = note.color, align_v = "center" },
            column {
                spacing = 2,
                align_v = "center",
                children = {
                    text { content = note.title, font_size = 13, font_weight = 700, foreground = "#cdd6f4" },
                    text { content = note.body, font_size = 12, foreground = "#a6adc8" },
                },
            },
        },
    }
end

-- The slot keeps its height after its card leaves.
local function slot(note)
    return rect {
        width = 280,
        height = 60,
        children = dismissed:map(function(gone) return gone[note.title] and {} or { card(note) } end),
    }
end

return panel {
    id = "notifications",
    layer = "overlay",
    anchor = { top = true, right = true },
    width = 300,
    height = 400,
    child = column { spacing = 8, children = { slot(NOTES[1]), slot(NOTES[2]), slot(NOTES[3]) } },
}

Use different timing for opening and closing

delay, duration and the rest of an entry accept a signal, read on the same pass that moves the target. Derive the timing from the state that moves it. Here the label waits 200 ms for the pill to grow, then fades in; on close the same entry resolves delay = 0, so it fades out while the pill shrinks.

local open = state("open", false)
-- 200 ms to wait for the grow on the way in, none on the way out.
local wait = open:map(function(on) return on and 200 or 0 end)

return rect {
    width = open:map(function(on) return on and 200 or 56 end),
    height = 56,
    radius = 28,
    background = "#1e1e2e",
    clip = "rounded",
    animate = { width = { duration = 200, easing = "out_cubic" } },
    children = {
        row {
            width = 200,
            height = 56,
            padding = 16,
            spacing = 10,
            children = {
                icon { name = "notification-symbolic", size = 24, foreground = "#89b4fa", align_v = "center" },
                text {
                    content = "New message",
                    font_size = 14,
                    foreground = "#cdd6f4",
                    align_v = "center",
                    opacity = open:map(function(on) return on and 1 or 0 end),
                    animate = { opacity = { duration = 150, delay = wait } },
                },
            },
        },
    },
}

The row keeps its full width, so the label never rewraps as the pill moves; clip = "rounded" cuts what the pill has not grown over yet.

Sequence phases

An exit cannot do this: a leaving node takes no flow space, so its parent closes up at once and there is nothing left to resize around. Keep the container’s size in state instead and stage each phase with delay(signal, ms), which lags a state by a fixed time. Each phase is a signal that changes ms later than the one before; the phase durations must add up to those offsets. A fade that only needs to wait can take delay in its own entry instead, as in the recipe above.

local page = state("page", "short")
local PAGES = {
    short = { height = 64, lines = { "Sync finished" } },
    tall = { height = 112, lines = { "Sync finished", "48 files uploaded", "2 conflicts need review" } },
}

local resized = delay(page, 150)
local swapped = delay(page, 400)

return rect {
    width = 240,
    height = resized:map(function(p) return PAGES[p].height end),
    radius = 14,
    background = "#1e1e2e",
    clip = "rounded",
    animate = { height = { duration = 250, easing = "out_cubic" } },
    children = {
        column {
            padding = 16,
            spacing = 4,
            -- Visible only while the page and the swapped content agree.
            opacity = computed({ page, swapped }, function(now, shown) return now == shown and 1 or 0 end),
            animate = { opacity = 150 },
            children = swapped:map(function(p)
                local out = {}
                for i, line in ipairs(PAGES[p].lines) do
                    out[i] = text { content = line, font_size = i == 1 and 14 or 12, foreground = "#cdd6f4" }
                end
                return out
            end),
        },
    },
}

Grow a container out of a small shape

Animate width and height with from set to the small size. from applies to a node’s first layout, so the card is built when the state turns on. Eased runs end exactly on the size; a spring with damping below critical overshoots it and rings. Give the children a fixed size so they do not rewrap while the box moves, and set clip = "rounded" so they are cut to the moving box and its radius.

local go = state("go", false)
local EASED = { duration = 350, easing = "out_cubic", from = 40 }
local SPRING = { spring = { stiffness = 300, damping = 16 }, from = 40 }

local function card(label, timing)
    return rect {
        width = 176,
        height = 96,
        radius = 20,
        background = "#1e1e2e",
        clip = "rounded",
        align_h = "center",
        align_v = "center",
        animate = { width = timing, height = timing },
        children = {
            column {
                width = 176,
                height = 96,
                padding = 16,
                spacing = 4,
                children = {
                    text { content = label, font_size = 14, font_weight = 700, foreground = "#cdd6f4" },
                    text { content = "Grows from 40 px", font_size = 12, foreground = "#a6adc8" },
                },
            },
        },
    }
end

local function slot(label, timing)
    return rect {
        width = 216,
        height = 136,
        children = go:map(function(on) return on and { card(label, timing) } or {} end),
    }
end

return row { spacing = 8, children = { slot("Eased", EASED), slot("Spring", SPRING) } }

Replay a keyframe run from where it is

A pupil glances aside and back on each click. run counts the clicks, so identical frames play again on every one, and "current" starts each glance from wherever the pupil is, mid-glance or not. No timer takes the entry away and puts it back:

local looks = state("looks", 0)

return rect {
    width = 12,
    height = 12,
    radius = 6,
    background = "#cdd6f4",
    translate = { x = 0, y = 0 },
    on_click = function() looks:set(looks:get() + 1) end,
    animate = looks:map(function(n)
        local glance = { "current", { x = 6, y = -4 }, { x = 0, y = 0 } }
        return { translate = { duration = 150, easing = "out_cubic", run = n, keyframes = glance } }
    end),
}

Gotchas

See also: signals (pulse, delay, hover), nodes (properties and identity), input (hover and clicks that drive motion), paint (what the painted properties draw).

Source: animate, interpolation, easing, spring, keyframes, leaving nodes, range clamps.
