A picture from a file: wallpapers, album art, avatars, thumbnails. It can decode off-thread, hold the previous picture while a new one loads, and cross-fade or run a shader between them. For theme icons, use an icon.

SVG and SVGZ <text> use the fonts loaded by Mantle. Declare required families in fonts { ... }; text without a family uses the chain’s primary font. Generic names use the families declared in the chain. An unavailable family falls back to the loaded serif family, or the primary if none is loaded. SVG text uses SVG layout and shaping, so its spacing can differ from a text node. Images, icons and file masks share this behavior, including background decoding.

A wallpaper that crossfades when the path changes:

local path = state("wallpaper", "/usr/share/backgrounds/a.jpg")

return { panel {
    id = "wallpaper",
    layer = "background",
    anchor = { top = true, bottom = true, left = true, right = true },
    width = "fill",
    height = "fill",
    child = image {
        id = "wallpaper_image", -- keeps the node, and so the held picture, across source changes
        source = path,
        async = true,
        transition = { duration = 600, easing = "in_out_cubic" },
        width = "fill",
        height = "fill",
    },
} }

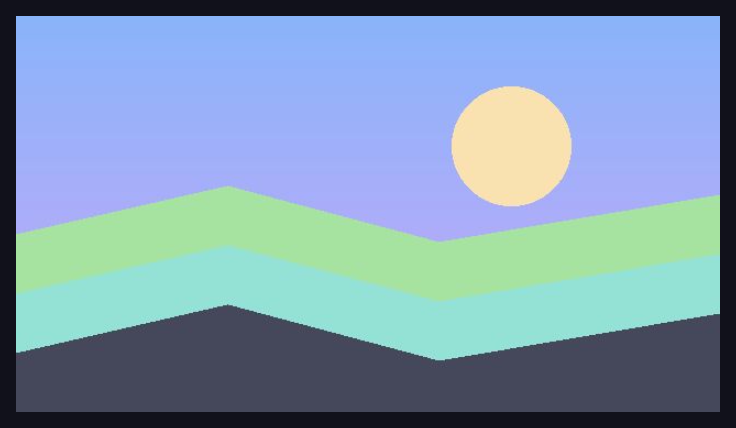

A landscape illustration with layered hills and a sun.

Properties

image takes the common properties, plus:

Property	Type	Default	Behaviour
`source`	`string\|Bound`	`""`	A file path (`mantle.config_dir .. "/img/a.png"`, or `~/` under `$HOME`), never a theme name; `""` draws nothing. PNG, JPEG, WebP, GIF, ICO, BMP, SVG or SVGZ; animated GIF, WebP and APNG loop
`fit`	`"cover"\|"contain"\|"stretch"\|Bound`	`"cover"`	`"cover"` fills the box and crops, `"contain"` fits inside it, `"stretch"` distorts to it
`async`	`boolean\|Bound`	`false`	`false` decodes in the frame that first draws it. `true` decodes on a worker and draws nothing until the first decode lands. A resize keeps drawing the previous size, scaled, until the new size decodes; use it for many or large images
`retain`	`boolean\|Bound`	`false`	Keep drawing the last picture while a new `source` decodes, and on a failed decode. Needs `async = true` and a stable `id`
`transition`	`Transition\|Bound`	None	Cross from the held picture to each newly decoded `source`. Implies `retain`; needs `async = true` and a stable `id`. Unknown keys are refused. See transition
`source_blur`	`number\|Bound`, `[0, 8192]`	`0`	Blur sigma in px, baked into the pixels once at decode (three box passes approximating a Gaussian); see blurs. Animations ignore it. Under `async`, a change blanks the image until the re-decode lands; `retain` does not cover it
`radius`	`number\|Corners\|Bound`, `[0, 8192]`	`0`	Corner radius px of the drawn picture, as `rect.radius`: a number sets all four corners, a missing corner is `0`, corners too big for a side shrink together. Rounds the visible picture, so `"contain"` rounds the fitted picture, not the box. Hit-testing ignores it
`corner_smoothing`	`number\|Bound`, `[0, 1]`	`0`	Continuous corners on the drawn picture, as `rect.corner_smoothing`. The shader that rounds a `transition` approximates a smoothed corner by a superellipse through its endpoints and midpoint
`playing`	`boolean\|Bound`	`true`	`false` holds an animation on its current frame, the first if it never played, and stops its frame requests; `true` resumes from there. Per node: another image showing the same file plays on, and a node keeps its place while scrolled out or resized. Stills ignore it
`status`	`Bound`	None	An `image_status(name)` signal. The engine writes the load of `source`; see load status

transition

Field	Values	Default	Behaviour
`duration`	ms, `[1, 60000]`	Required	Length of the cross
`easing`	An easing	`"in_out_quad"`	Drives `u_progress`
`shader`	Absolute, or `~/` under `$HOME`, `.frag` path	Built-in cross-dissolve	Replaces the dissolve. Recompiled when the file changes
`params`	`{ name = number \| { up to 4096 numbers } }`	`{}`	Uniforms for that shader, as on a shader node. Refused without `shader`
`images`	`{ name = "/abs/path.png" }`	`{}`	Up to 8 rasters to sample by name, with the rules of a shader node’s `images`; they take the units after `u_from` and `u_to`. Refused without `shader`

The first picture appears without a transition. A transition shader gets everything a shader node gets, plus:

Name	What
`mantle_from(uv)`, `mantle_to(uv)`	Outgoing and incoming picture at a box coordinate, premultiplied, already placed by `fit`; transparent outside the picture
`u_from_rect`, `u_to_rect`	Each picture’s `(x, y, w, h)` in box fractions; may pass `0..1` under `"cover"`

u_progress is the eased progress 0..1. A transition shader that fails to build logs once and the node falls back to the cross-dissolve.

Load status

status = image_status("name") reports whether source is loading, ready (with the file’s own size) or failed: see image_status.

How do I…

Task	Answer
Crossfade a wallpaper	The example above: `async`, `transition` and a stable `id`
Wipe instead of fade	`transition = { duration = 700, shader = mantle.config_dir .. "/shaders/wipe.frag" }` with a `.frag` that mixes `mantle_from` and `mantle_to`
Round an image’s corners	Below
Make a circular avatar	The same, with `radius` half the size (paint)
Show many thumbnails without stutter	`async = true` on each, in a `list`
Blur a wallpaper once	`source_blur = 20`
Freeze an animation until asked	`playing = live`, a boolean state the config turns on
Show a file that ships with the config	`source = mantle.config_dir .. "/img/logo.png"`
Fade in once decoded, show a load error or a resolution	Load status

Round an image’s corners

radius rounds the picture itself, as on a rect, so it needs no clipping wrapper. It rounds what shows: with fit = "contain" that is the fitted picture, not the box.

image {
    width = 96,
    height = 96,
    radius = 12,
    source = "/usr/share/backgrounds/a.jpg",
    fit = "cover",
    async = true,
}

Gotchas

Trap	Fix
The image does not appear	It has no intrinsic size. Give `width` and `height`
An image flashes blank when its `source` changes despite `retain`	`retain` needs `async = true` and a node that survives: give it a stable `id`
The shell stutters while images load	Inline decode blocks drawing. Set `async = true`
`source = "firefox"` draws nothing	`source` is a path. Use `icon` for theme names
A relative `source` draws nothing	It resolves against the Renderer’s working directory, not the config. Build paths from `mantle.config_dir`
`transition.params` or `transition.images` is refused	Both need a `shader`
An animation restarts from its first frame	Playback, `playing` included, is per node and file: a new `source`, or the node leaving the tree (its surface closes, a `list` drops it), starts it again
Two nodes on one animation show each other’s frame	Past the texture budget, or eight nodes on one file and size, nodes share one texture

See also: icon, shader, paint, animation.

Source: vocabulary, content parsers, transition, shader stage, decode, animation.
